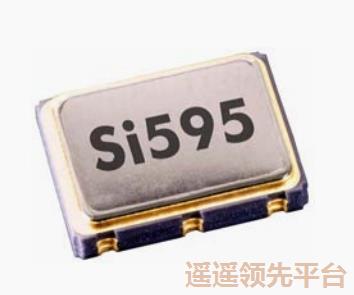

595CA12M2880DGR,压控晶体振荡器,SKYWORKSk1体育,7050振荡器,CMOSk1体育

频率：12.288MHz

尺寸：7.00mmx5.00mm

Part Series 型号	Si595
Original model 原厂编码	595CA12M2880DGR
Product Category 产品系列	SPXOk1体育
Manufacturer 品牌	Skyworksk1体育
Frequency 频率	12.288MHz
Supply Voltage 电压	3.3V
Output Type 输出方式	CMOS
Frequency Stability 频率稳定性	±20ppm
Package Size 包装尺寸	7.00mmx5.00mm

订购热线：13380314981

595CA12M2880DGR,压控晶体振荡器,SKYWORKSk1体育,7050振荡器,CMOSk1体育详细参数

Part Series 型号	Si595
Original model 原厂编码	595CA12M2880DGR
Product Category 产品系列	VCXOk1体育
Manufacturer 品牌	Skyworksk1体育
Frequency 频率	12.288MHz
Supply Voltage 电压	3.3V
Output Type 输出方式	CMOS
Frequency Stability 频率稳定性	±20ppm
Package Size 包装尺寸	7.00mmx5.00mm
Termination 脚位	6 Pad
Package Height 厚度	1.80mm
Package Type 封装类型	7050-SMD
Current Consumption 电流消耗	100mA
Operating Temperature 工作温度	-40℃~85℃
Lead Free 无铅	Yes
Mounting Style 安装方式	Surface Mount
Packaging 包装	Tape and Reel

595CA12M2880DGR,压控晶体振荡器,SKYWORKSk1体育,7050振荡器,CMOSk1体育相关产品

编码	品牌	系列	Type	频率	输出	电压
595CA000149DGR	Skyworks	Si595	VCXO	149kHz	CMOS	3.3V
595CA12M2880DGR	Skyworks	Si595	VCXO	12.288MHz	CMOS	3.3V
595CA28M0000DGR	Skyworksk1体育	Si595	VCXO	28MHz	CMOS	3.3V
595CA65M0000DGR	Skyworks	Si595	VCXO	65MHz	CMOS	3.3V
595CA74M2500DGR	Skyworks	Si595	VCXO	74.25MHz	CMOS	3.3V
595CB10M0000DGR	Skyworks	Si595	VCXO	10MHz	CMOS	3.3V
595CB10M2400DGR	Skyworks	Si595	VCXO	10.24MHz	CMOS	3.3V
595CB12M2880DGR	Skyworks	Si595	VCXO	12.288MHz	CMOS	3.3V
595CB12M2890DGR	Skyworks	Si595	VCXO	12.289MHz	CMOS	3.3V
595CB28M0000DGR	Skyworks	Si595	VCXO	28MHz	CMOS	3.3V
595CB70M6560DGR	Skyworks	Si595	VCXO	70.656MHz	CMOS	3.3V
595CB95M5730DGR	Skyworks	Si595	VCXO	95.573MHz	CMOS	3.3V
595CD000299DGR	Skyworks	Si595	VCXO	299kHz	CMOS	3.3V
595CD122M880DGR	Skyworks	Si595	VCXO	122.88MHz	CMOS	3.3V
595CD34M3680DGR	Skyworks	Si595	VCXO	34.368MHz	CMOS	3.3V
595CD35M3280DGR	Skyworks	Si595	VCXO	35.328MHz	CMOS	3.3V
595CD40M0000DGR	Skyworks	Si595	VCXO	40MHz	CMOS	3.3V
595CD44M7360DGR	Skyworks	Si595	VCXO	44.736MHz	CMOS	3.3V
595CD50M0000DGR	Skyworks	Si595	VCXO	50MHz	CMOS	3.3V
595CC10M0000DG	Skyworks	Si595	VCXO	10MHz	CMOS	3.3V
595CC125M000DG	Skyworks	Si595	VCXO	125MHz	CMOS	3.3V
595CC60M7500DG	Skyworks	Si595	VCXO	60.75MHz	CMOS	3.3V
595CF10M0000DG	Skyworks	Si595	VCXO	10MHz	CMOS	3.3V
595CF24M0000DG	Skyworks	Si595	VCXO	24MHz	CMOS	3.3V
595CF27M0000DG	Skyworks	Si595	VCXO	27MHz	CMOS	3.3V
595CF60M7500DG	Skyworks	Si595	VCXO	60.75MHz	CMOS	3.3V
595CG38M7853DG	Skyworks	Si595	VCXO	38.7853MHz	CMOS	3.3V
595CG50M0000DG	Skyworks	Si595	VCXO	50MHz	CMOS	3.3V
595CG61M4400DG	Skyworks	Si595	VCXO	61.44MHz	CMOS	3.3V
595CG67M5000DG	Skyworks	Si595	VCXO	67.5MHz	CMOS	3.3V
595PG27M0000DG	Skyworks	Si595	VCXO	27MHz	CMOS	3.3V
595VF49M1520DG	Skyworks	Si595	VCXO	49.152MHz	CMOS	1.8V
595CG10M0000DG	Skyworks	Si595	VCXO	10MHz	CMOS	3.3V
595CG93M3120DG	Skyworks	Si595	VCXO	93.312MHz	CMOS	3.3V
595CS61M4400DG	Skyworks	Si595	VCXO	61.44MHz	CMOS	3.3V
595JM49M1520DG	Skyworks	Si595	VCXO	49.152MHz	CMOS	1.8V
595CM20M0000DG	Skyworks	Si595	VCXO	20MHz	CMOS	3.3V
595CS54M0000DG	Skyworks	Si595	VCXO	54MHz	CMOS	3.3V
595CS49M1520DG	Skyworks	Si595	VCXO	49.152MHz	CMOS	3.3V
595CC10M0000DGR	Skyworks	Si595	VCXO	10MHz	CMOS	3.3V
595CC125M000DGR	Skyworks	Si595	VCXO	125MHz	CMOS	3.3V
595CC60M7500DGR	Skyworks	Si595	VCXO	60.75MHz	CMOS	3.3V
595CF10M0000DGR	Skyworks	Si595	VCXO	10MHz	CMOS	3.3V
595CF24M0000DGR	Skyworks	Si595	VCXO	24MHz	CMOS	3.3V
595CF27M0000DGR	Skyworks	Si595	VCXO	27MHz	CMOS	3.3V
595CF60M7500DGR	Skyworks	Si595	VCXO	60.75MHz	CMOS	3.3V
595CG38M7853DGR	Skyworks	Si595	VCXO	38.7853MHz	CMOS	3.3V
595CG50M0000DGR	Skyworks	Si595	VCXO	50MHz	CMOS	3.3V
595CG61M4400DGR	Skyworks	Si595	VCXO	61.44MHz	CMOS	3.3V
595CG67M5000DGR	Skyworks	Si595	VCXO	67.5MHz	CMOS	3.3V
595PG27M0000DGR	Skyworks	Si595	VCXO	27MHz	CMOS	3.3V
595VF49M1520DGR	Skyworks	Si595	VCXO	49.152MHz	CMOS	1.8V
595CG93M3120DGR	Skyworks	Si595	VCXO	93.312MHz	CMOS	3.3V
595CG10M0000DGR	Skyworks	Si595	VCXO	10MHz	CMOS	3.3V
595JM49M1520DGR	Skyworks	Si595	VCXO	49.152MHz	CMOS	1.8V
595CS54M0000DGR	Skyworks	Si595	VCXO	54MHz	CMOS	3.3V
595CS61M4400DGR	Skyworks	Si595	VCXO	61.44MHz	CMOS	3.3V
595CS49M1520DGR	Skyworks	Si595	VCXO	49.152MHz	CMOS	3.3V
595CM20M0000DGR	Skyworks	Si595	VCXO	20MHz	CMOS	3.3V
595CA000149DG	Skyworks	Si595	VCXO	149kHz	CMOS	3.3V
595CA12M2880DG	Skyworks	Si595	VCXO	12.288MHz	CMOS	3.3V
595CA28M0000DG	Skyworks	Si595	VCXO	28MHz	CMOS	3.3V
595CA65M0000DG	Skyworks	Si595	VCXO	65MHz	CMOS	3.3V
595CA74M2500DG	Skyworks	Si595	VCXO	74.25MHz	CMOS	3.3V
595CB10M0000DG	Skyworks	Si595	VCXO	10MHz	CMOS	3.3V
595CB10M2400DG	Skyworks	Si595	VCXO	10.24MHz	CMOS	3.3V
595CB12M2880DG	Skyworks	Si595	VCXO	12.288MHz	CMOS	3.3V
595CB12M2890DG	Skyworks	Si595	VCXO	12.289MHz	CMOS	3.3V
595CB28M0000DG	Skyworks	Si595	VCXO	28MHz	CMOS	3.3V
595CB70M6560DG	Skyworks	Si595	VCXO	70.656MHz	CMOS	3.3V
595CB95M5730DG	Skyworks	Si595	VCXO	95.573MHz	CMOS	3.3V
595CD000299DG	Skyworks	Si595	VCXO	299kHz	CMOS	3.3V
595CD122M880DG	Skyworks	Si595	VCXO	122.88MHz	CMOS	3.3V
595CD34M3680DG	Skyworks	Si595	VCXO	34.368MHz	CMOS	3.3V
