ECSk1体育,TCXO振荡器,ECS-TXO-2520-33-320-AN-TR,物联网k1体育,2520贴片k1体育
频率：32MHz
尺寸：2.50mm x 2.00mm
| Part Series 型号 | ECS-TXO-2520 |
| Original model 原厂编码 | ECS-TXO-2520-33-320-AN-TR |
| Product Category 产品系列 | TCXOk1体育 |
| Manufacturer 品牌 | ECS |
| Frequency 频率 | 32MHz |
| Supply Voltage 电压 | 电压3.3V |
| Output Type 输出方式 | HCMOS |
订购热线：13380314981
ECSk1体育,TCXO振荡器,ECS-TXO-2520-33-320-AN-TR,物联网k1体育,2520贴片k1体育 详细参数
ECSk1体育,TCXO振荡器,ECS-TXO-2520-33-320-AN-TR,物联网k1体育,2520贴片k1体育 相关产品
| Part Series 型号 | ECS-TXO-2520 |
| Original model 原厂编码 | ECS-TXO-2520-33-320-AN-TR |
| Product Category 产品系列 | TCXO振荡器 |
| Manufacturer 品牌 | ECS |
| Frequency 频率 | 32MHz |
| Supply Voltage 电压 | 3.3V |
| Output Type 输出方式 | HCMOS |
| Frequency Stability 频率稳定性 | ±2.5ppm |
| Package Size 包装尺寸 | 2.50mm x 2.00mm |
| Termination 脚位 | 4 Pad |
| Package Height 厚度 | 1.00mm |
| Package Type 封装类型 | 2520-SMD |
| Current Consumption 电流消耗 | 6mA Max. |
| Operating Temperature 工作温度 | -40℃~85℃ |
| Lead Free 无铅 | Yes |
| Mounting Style 安装方式 | Surface Mount |
| Packaging 包装 | Tape and Reel |
| 编码 | 品牌 | 系列 | 类型 | 频率 | 输出 | 电压 | 频率稳定性 |
| ECS-TXO-20CSMV-320-EY-TR | ECS | ECS-TXO-20CSMV | TCXO | 32MHz | Clipped Sine Wave | 1.7V~3.465V | ±2.5ppm |
| ECS-TXO-2520MV-320-AN-TR | ECS | ECS-TXO-2520MV | TCXO | 32MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-500-AN-TR | ECS | ECS-TXO-2520MV | TCXO | 50MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-25CSMV-320-DY-TR | ECS | ECS-TXO-25CSMV | TCXO | 32MHz | Clipped Sine Wave | 1.7V~3.465V | ±2ppm |
| ECS-TXO-25CSMV-320-BM-TR | ECS | ECS-TXO-25CSMV | TCXO | 32MHz | Clipped Sine Wave | 1.7V~3.465V | ±1ppm |
| ECS-TXO-20CSMV-384-AY-TR | ECSk1体育 | ECS-TXO-20CSMV | TCXO | 38.4MHz | Clipped Sine Wave | 2.7V~3.465V | ±500ppb |
| ECS-TXO-2520-33-320-AN-TR | ECS | ECS-TXO-2520 | TCXO | 32MHz | HCMOS振荡器 | 3.3V | ±2.5ppm |
| ECS-TXO-2520-33-240-AN-TR | ECS | ECS-TXO-2520 | TCXO | 24MHz | HCMOS | 3.3V | ±2.5ppm |
| ECS-TXO-2520-33-100-AN-TR | ECS | ECS-TXO-2520 | TCXO | 10MHz | HCMOS | 3.3V | ±2.5ppm |
| ECS-TXO-2520-33-120-AN-TR | ECS | ECS-TXO-2520 | TCXO | 12MHz | HCMOS | 3.3V | ±2.5ppm |
| ECS-TXO-2520-33-250-AN-TR | ECS | ECS-TXO-2520 | TCXO | 25MHz | HCMOS | 3.3V | ±2.5ppm |
| ECS-TXO-2520-33-500-AN-TR | ECS | ECS-TXO-2520 | TCXO | 50MHz | HCMOS | 3.3V | ±2.5ppm |
| ECS-TXO-2520-33-400-AN-TR | ECS | ECS-TXO-2520 | TCXO | 40MHz | HCMOS | 3.3V | ±2.5ppm |
| ECS-TXO-2520-33-160-AN-TR | ECS | ECS-TXO-2520 | TCXO | 16MHz | HCMOS | 3.3V | ±2.5ppm |
| ECS-TXO-2520MV-240-AN-TR | ECS | ECS-TXO-2520MV | TCXO | 24MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-20CSMV-260-AY-TR | ECS | ECS-TXO-20CSMV | TCXO | 26MHz | Clipped Sine Wave | 1.7V~3.465V | ±500ppb |
| ECS-TXO-2520MV-100-AN-TR | ECS | ECS-TXO-2520MV | TCXO | 10MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-120-AN-TR | ECS | ECS-TXO-2520MV | TCXO | 12MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-500-AY-TR | ECS | ECS-TXO-2520MV | TCXO | 50MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-100-AY-TR | ECS | ECS-TXO-2520MV | TCXO | 10MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-250-AY-TR | ECS | ECS-TXO-2520MV | TCXO | 25MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-25CSMV-400-BN-TR | ECS | ECS-TXO-25CSMV | TCXO | 40MHz | Clipped Sine Wave | 1.7V~3.465V | ±1ppm |
| ECS-TXO-2520-33-200-AN-TR | ECS | ECS-TXO-2520 | TCXO | 20MHz | HCMOS | 3.3V | ±2.5ppm |
| ECS-TXO-2520MV-240-AY-TR | ECS | ECS-TXO-2520MV | TCXO | 24MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-400-AN-TR | ECS | ECS-TXO-2520MV | TCXO | 40MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-25CSMV-320-AM-TR | ECS | ECS-TXO-25CSMV | TCXO | 32MHz | Clipped Sine Wave | 1.7V~3.465V | ±500ppb |
| ECS-TXO-2520MV-120-AY-TR | ECS | ECS-TXO-2520MV | TCXO | 12MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-160-AY-TR | ECS | ECS-TXO-2520MV | TCXO | 16MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-160-AN-TR | ECS | ECS-TXO-2520MV | TCXO | 16MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-320-AY-TR | ECS | ECS-TXO-2520MV | TCXO | 32MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
| ECS-TXO-2520MV-250-AN-TR | ECS | ECS-TXO-2520MV | TCXO | 25MHz | CMOS | 1.7V~3.6V | ±2.5ppm |

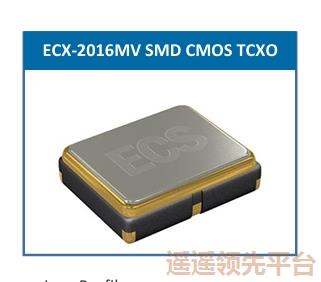

| ECS-TXO-2016MV-320-TR | ECS | ECS-TXO-2016MV | TCXO | 32MHz | CMOS | 1.8V,2.5V,3.3V | ±2.5ppm |
| ECS-TXO-2016MV-160-TR | ECS | ECS-TXO-2016MV | TCXO | 16MHz | CMOS | 1.8V,2.5V,3.3V | ±2.5ppm |
| ECS-TXO-2016MV-500-TR | ECS | ECS-TXO-2016MV | TCXO | 50MHz | CMOS | 1.8V,2.5V,3.3V | ±2.5ppm |
| ECS-TXO-2016MV-400-TR | ECS | ECS-TXO-2016MV | TCXO | 40MHz | CMOS | 1.8V,2.5V,3.3V | ±2.5ppm |
| ECS-TXO-20CSMV-390-AY-TR | ECS | ECS-TXO-20CSMV | TCXO | 39MHz | Clipped Sine Wave | 1.8V,2.5V,3.3V | ±500ppb |
| ECS-TXO-2016MV-200-TR | ECS | ECS-TXO-2016MV | TCXO | 20MHz | CMOS | 1.8V,2.5V,3.3V | ±2.5ppm |
| ECS-TXO-20CSMV4-384-AY-TR | ECS | ECS-TXO-20CSMV4 | TCXO | 38.4MHz | Clipped Sine Wave | 1.8V,2.5V,3.3V | ±500ppb |
| ECS-TXO-20CSMV4-390-CN-TR | ECS | ECS-TXO-20CSMV4 | TCXO | 39MHz | Clipped Sine Wave | 1.8V,2.5V,3.3V | ±1.5ppm |
| ECS-TXO-20CSMV4-260-AN-TR | ECS | ECS-TXO-20CSMV4 | TCXO | 26MHz | Clipped Sine Wave | 1.8V,2.5V,3.3V | ±500ppb |
| ECS-TXO-20CSMV4-320-AY-TR | ECS | ECS-TXO-20CSMV4 | TCXO | 32MHz | Clipped Sine Wave | 1.8V,2.5V,3.3V | ±500ppb |
| ECS-TXO-2016MV-120-TR | ECS | ECS-TXO-2016MV | TCXO | 12MHz | CMOS | 1.8V,2.5V,3.3V | ±2.5ppm |
| ECS-TXO-2016MV-250-TR | ECS | ECS-TXO-2016MV | TCXO | 25MHz | CMOS | 1.8V,2.5V,3.3V | ±2.5ppm |
| ECS-TXO-2016MV-100-TR | ECS | ECS-TXO-2016MV | TCXO | 10MHz | CMOS | 1.8V,2.5V,3.3V | ±2.5ppm |
| ECS-TXO-25CSMV-AC-260-AY-TR | ECS | ECS-TXO-25CSMV | TCXO | 26MHz | Clipped Sine Wave | 1.7V~3.6V | ±500ppb |
| ECS-TXO-2520MV-400-AY-TR | ECS | ECS-TXO-2520MV | TCXO | 40MHz | CMOS | 1.7V~3.6V | ±2.5ppm |
