QTC6A27.0000FDT1I20M,Quarztechnik夸克k1体育,QTC6A无源k1体育

频率：27.0 MHz

尺寸：6.0mm x 3.50mm

原厂型号 Original model ：	QTC6A27.0000FDT1I20M
品牌 brand ：	夸克进口无源k1体育
型号名称 Model name：	QTC6A
Type 系列：	MHz Crystal
频率 frequency ：	27.0 MHz
Frequency Stability频率稳定度	±20ppm
frequency tolerance频率容差	±10ppm
Load capacitance 负载电容	18 pF

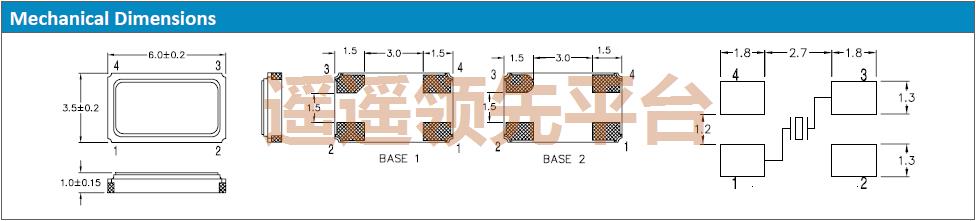

Size / Dimension 尺寸	6.0mm x 3.50mm

订购热线：13380314981

QTC6A27.0000FDT1I20M,Quarztechnik夸克k1体育,QTC6A无源k1体育详细参数

原厂型号 Original model ：	QTC6A27.0000FDT1I20M
品牌 brand ：	Quarztechnik谐振器
型号名称 Model name：	QTC6A
Type 系列：	MHz Crystal
频率 frequency ：	27.0 MHz
Frequency Stability频率稳定度	±20ppm
frequency tolerance频率容差	±10ppm
Load capacitance 负载电容	18 pF
Size / Dimension 尺寸	6.0mm x 3.50mm
Package Height 厚度	1.00mm
ESR (Equivalent Series Resistance)ESR（等效串联电阻）	-
Operating Temperature 工作温度	-40 - +85°C
Termination 脚位	4 pad
Package Type 封装类型	4-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount

QTC6A27.0000FDT1I20M,Quarztechnik夸克k1体育,QTC6A无源k1体育相关产品

8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A8.00000FDT1I20M
10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A10.0000FDT1I20M
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A11.0592FDT1I20M
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A12.0000FDT1I20M
14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.31818FDT1I20M
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.7456FDT1I20M
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A16.0000FDT1I20M
19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A19.6608FDT1I20M
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A24.0000FDT1I20M
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A25.0000FDT1I20M
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A27.0000FDT1I20M
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A32.0000FDT1I20M
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A8.00000FDT1I20M
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A11.0592FDT1I20M
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A12.0000FDT1I20M
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A14.7456FDT1I20M
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A16.0000FDT1I20M
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A20.0000FDT1I20M
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A24.0000FDT1I20M
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A25.0000FDT1I20M
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A27.0000FDT1I20M
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A32.0000FDT1I20M
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A8.00000FDT1I20M
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.0000FDT1I20M
12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.2880FDT1I20M
15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A15.3600FDT1I20M
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A16.0000FDT1I20M
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A18.4320FDT1I20M
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A20.0000FDT1I20M
24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A24.5760FDT1I20M
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A25.0000FDT1I20M
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A27.0000FDT1I20M
30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A30.0000FDT1I20M
40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A40.0000FDT1I20M
48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A48.0000FDT1I20M
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3216.0000FDT1I20M
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3218.4320FDT1I20M
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3220.0000FDT1I20M
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3224.0000FDT1I20M
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3225.0000FDT1I20M
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3227.0000FDT1I20M
14.7456 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A14.7456B15M
16.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A16.0000B15M
16.384 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A16.3840B15M
20.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A20.0000B15M
24.576 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A24.5760B15M
25.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A25.0000B15M
27.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A27.0000B15M
30.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A30.0000B15M
32.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX733A32.0000B15M
3.6864 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A3.68640B15M
4.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A4.00000B15M
7.3728 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A7.37280B15M
8.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A8.00000B15M
10.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A10.0000B15M
11.0592 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A11.0592B15M
12.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A12.0000B15M
16.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A16.0000B15M
16.384 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A16.3840B15M
20.0 MHz	HCMOS	3.3V	-40 - +85℃	±25ppm	QTX533A20.0000B15M
