XNCLH26M000THJA2P0,Murata村田k1体育,XNCLH有源振荡器

频率：26 MHz

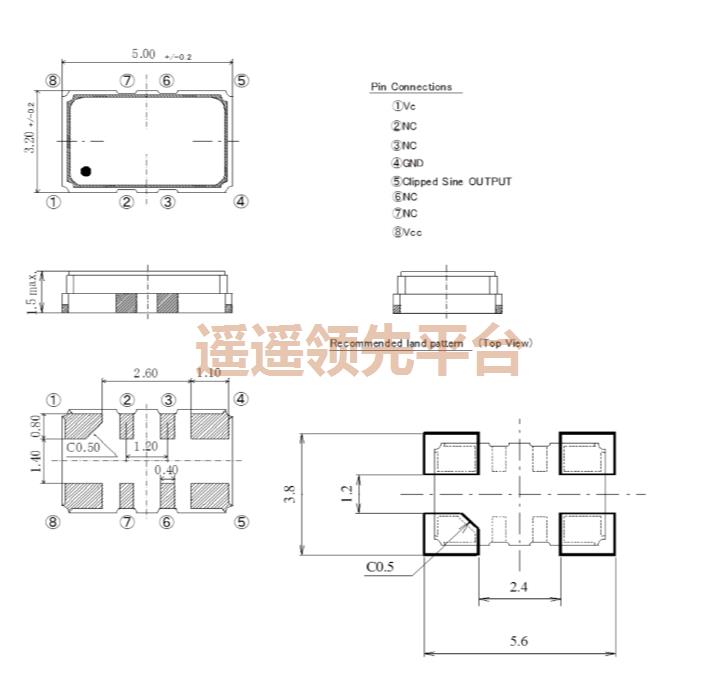

尺寸：5.00mm x 3.20mm

Original model 原厂编码	XNCLH26M000THJA2P0
Manufacturer 品牌	Murata村田k1体育
Part Series 型号	XNCLH
Type 类型	TCXO
Frequency 频率	26 MHz
Output Type 输出方式	削峰正弦波
Supply Voltage 电压	3V
Frequency Stability 频率稳定性	±200ppb
Operating Temperature 工作温度	-40°C ~ 85°C
Current Consumption 电流消耗	2.6mA
Package Size 包装尺寸	5.00mm x 3.20mm

订购热线：13380314981

XNCLH26M000THJA2P0,Murata村田k1体育,XNCLH有源振荡器详细参数

Original model 原厂编码	XNCLH26M000THJA2P0
Manufacturer 品牌	Murata村田k1体育
Part Series 型号	XNCLH
Type 类型	TCXO
Frequency 频率	26 MHz
Output Type 输出方式	削峰正弦波k1体育
Supply Voltage 电压	3V
Frequency Stability 频率稳定性	±200ppb
Operating Temperature 工作温度	-40°C ~ 85°C
Current Consumption 电流消耗	2.6mA
Package Size 包装尺寸	5.00mm x 3.20mm
Package Height 厚度	1.50mm
Termination 脚位	8Pad
Package Type 封装类型	8-SMD
Lead Free 无铅	Yes
Mounting Style 安装方式	Surface Mount
Packaging 包装	Tape and Reel

XNCLH26M000THJA2P0,Murata村田k1体育,XNCLH有源振荡器相关产品

XTCLH19M440CHJA0P0	Murata村田k1体育	XTCLH	VCTCXO	19.44 MHz	CMOS	3.3V	±280ppb
XTCLH19M200THJA3P0	Murata村田k1体育	XNCLH	TCXO	19.2 MHz	削峰正弦波	3V	±200ppb
XNCLH19M200CHJB8P0	Murata村田k1体育	XNCLH	TCXO	19.2 MHz	CMOS	3.3V	±280ppb
XNCLH20M000THJA1P0	Murata村田k1体育	XNCLH	TCXO	20 MHz	削峰正弦波	3V	±200ppb
XTCLH24M000CHJA3P0	Murata村田k1体育	XTCLH	VCTCXO	24 MHz	CMOS	3.3V	±280ppb
XTCLH30M720THJA0P0	Murata村田k1体育	XNCLH	TCXO	30.72 MHz	削峰正弦波	3V	±200ppb
XTCLH49M152CHJA5P0	Murata村田k1体育	XTCLH	VCTCXO	49.152 MHz	CMOS	3.3V	±280ppb
XNCLH49M152CHJA6P0	Murata村田k1体育	XNCLH	TCXO	49.152 MHz	CMOS	3.3V	±280ppb
XNCLH49M152CHJA7P0	Murata村田k1体育	XNCLH	TCXO	49.152 MHz	CMOS	3.3V	±280ppb
XTCLH49M152CHJA2P0	Murata村田k1体育	XTCLH	VCTCXO	49.152 MHz	CMOS	3.3V	±280ppb
XTCLH25M000TJJA5P2	Murata村田k1体育	XTCLH	VCTCXO	25 MHz	削峰正弦波	3V	±200ppb
XTCLH25M000THJA0P0	Murata村田k1体育	XNCLH	TCXO	25 MHz	削峰正弦波	3V	±200ppb
XNCLH30M720THJA1P0	Murata村田k1体育	XNCLH	TCXO	30.72 MHz	削峰正弦波	3V	±200ppb
XNCLH26M000THJA2P0	Murata村田k1体育	XNCLH	TCXO	26 MHz	削峰正弦波	3V	±200ppb
XTCLH10M000THJA0P0	Murata村田k1体育	XNCLH	TCXO	10 MHz	削峰正弦波	3V	±200ppb
XTCLH12M800THJA0P0	Murata村田k1体育	XNCLH	TCXO	12.8 MHz	削峰正弦波	3V	±200ppb
XTCLH16M384THJA2P0	Murata村田k1体育	XNCLH	TCXO	16.384 MHz	削峰正弦波	3V	±200ppb
XTCLH20M000THJA0P0	Murata村田k1体育	XNCLH	TCXO	20 MHz	削峰正弦波	3V	±200ppb
XTCLH24M576THJA6P0	Murata村田k1体育	XNCLH	TCXO	24.576 MHz	削峰正弦波	3V	±200ppb
XTCLH26M000THJA0P0	Murata村田k1体育	XNCLH	TCXO	26 MHz	削峰正弦波	3V	±200ppb
XTCLH40M000THJA1P0	Murata村田k1体育	XNCLH	TCXO	40 MHz	削峰正弦波	3V	±200ppb
XTCLH10M000CHJA1P0	Murata村田k1体育	XNCLH	TCXO	10 MHz	CMOS	3.3V	±280ppb
XTCLH20M000CHJA0P0	Murata村田k1体育	XNCLH	TCXO	20 MHz	CMOS	3.3V	±280ppb
XTCLH20M000CYJB6P0	Murata村田k1体育	XNCLH	TCXO	20 MHz	CMOS	3.3V	±280ppb
XTCLH40M000CHJA0P0	Murata村田k1体育	XNCLH	TCXO	40 MHz	CMOS	3.3V	±280ppb
XTCLH40M000CYJC4P0	Murata村田k1体育	XNCLH	TCXO	40 MHz	CMOS	3.3V	±280ppb
XTCLH50M000CHJA3P0	Murata村田k1体育	XNCLH	TCXO	50 MHz	CMOS	3.3V	±280ppb
XNCLH10M000THJA0P0	Murata村田k1体育	XNCLH	TCXO	10 MHz	削峰正弦波	3V	±200ppb
XNCLH12M800THJA0P0	Murata村田k1体育	XNCLH	TCXO	12.8 MHz	削峰正弦波	3V	±200ppb
XNCLH16M384THJA2P0	Murata村田k1体育	XNCLH	TCXO	16.384 MHz	削峰正弦波	3V	±200ppb
XNCLH19M200THJA1P0	Murata村田k1体育	XNCLH	TCXO	19.2 MHz	削峰正弦波	3V	±200ppb
XNCLH24M576THJA1P0	Murata村田k1体育	XNCLH	TCXO	24.576 MHz	削峰正弦波	3V	±200ppb
XNCLH25M000THJA0P0	Murata村田k1体育	XNCLH	TCXO	25 MHz	削峰正弦波	3V	±200ppb
XNCLH40M000THJA1P0	Murata村田k1体育	XNCLH	TCXO	40 MHz	削峰正弦波	3V	±200ppb
XNCLH10M000CHJA2P0	Murata村田k1体育	XNCLH	TCXO	10 MHz	CMOS	3.3V	±280ppb
XNCLH20M000CHJA3P0	Murata村田k1体育	XNCLH	TCXO	20 MHz	CMOS	3.3V	±280ppb
XNCLH40M000CHJA4P0	Murata村田k1体育	XNCLH	TCXO	40 MHz	CMOS	3.3V	±280ppb
XNCLH50M000CHJA1P0	Murata村田k1体育	XNCLH	TCXO	50 MHz	CMOS	3.3V	±280ppb
XTCLH26M000TJJA6P2	Murata村田k1体育	XTCLH	VCTCXO	26 MHz	削峰正弦波	3V	±200ppb
XTCLH19M200TJJC3P2	Murata村田k1体育	XTCLH	VCTCXO	19.2 MHz	削峰正弦波	3V	±200ppb
XTCLH19M200CHJA1P0	Murata村田k1体育	XTCLH	VCTCXO	19.2 MHz	CMOS	3.3V	±280ppb
XNCLH12M800CHJB3P0	Murata村田k1体育	XNCLH	TCXO	12.8 MHz	CMOS	3.3V	±280ppb
XNCLH24M000CHJA3P0	Murata村田k1体育	XNCLH	TCXO	24 MHz	CMOS	3.3V	±280ppb
XTCLH12M800CHJA2P0	Murata村田k1体育	XTCLH	VCTCXO	12.8 MHz	CMOS	3.3V	±280ppb
XNCLH25M000CHJB9P0	Murata村田k1体育	XNCLH	TCXO	25 MHz	CMOS	3.3V	±280ppb
XTCLH24M000CHJA2P0	Murata村田k1体育	XTCLH	VCTCXO	24 MHz	CMOS	3.3V	±280ppb
XTCLH24M576CHJA2P0	Murata村田k1体育	XTCLH	VCTCXO	24.576 MHz	CMOS	3.3V	±280ppb
XNCLH19M440CHJA3P0	Murata村田k1体育	XNCLH	TCXO	19.44 MHz	CMOS	3.3V	±280ppb
XNCLH12M800CJKB2P0	Murata村田k1体育	XNCLH	TCXO	12.8 MHz	CMOS	3.3V	±140ppb
XNCLH24M576CHJA9P0	Murata村田k1体育	XNCLH	TCXO	24.576 MHz	CMOS	3.3V	±280ppb
XTCLH25M000CHJB0P0	Murata村田k1体育	XTCLH	VCTCXO	25 MHz	CMOS	3.3V	±280ppb
XTCLH24M576CHJA3P0	Murata村田k1体育	XTCLH	VCTCXO	24.576 MHz	CMOS	3.3V	±280ppb
XNCLH24M000CHJA2P0	Murata村田k1体育	XNCLH	TCXO	24 MHz	CMOS	3.3V	±280ppb
XNCLH24M576CHJA8P0	Murata村田k1体育	XNCLH	TCXO	24.576 MHz	CMOS	3.3V	±280ppb
XTCLH25M600CHJA0P0	Murata村田k1体育	XTCLH	VCTCXO	25.6 MHz	CMOS	3.3V	±280ppb
XNCLH25M600CHJA1P0	Murata村田k1体育	XNCLH	TCXO	25.6 MHz	CMOS	3.3V	±280ppb
